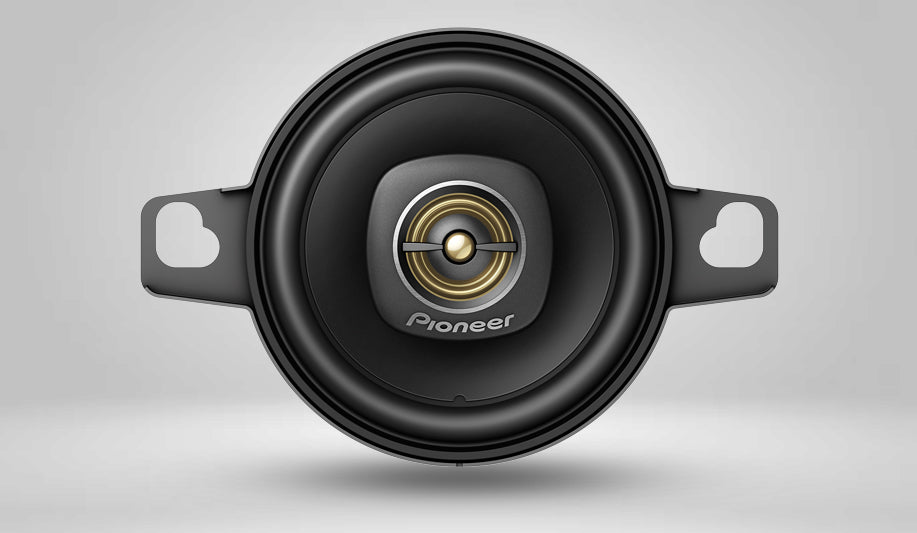

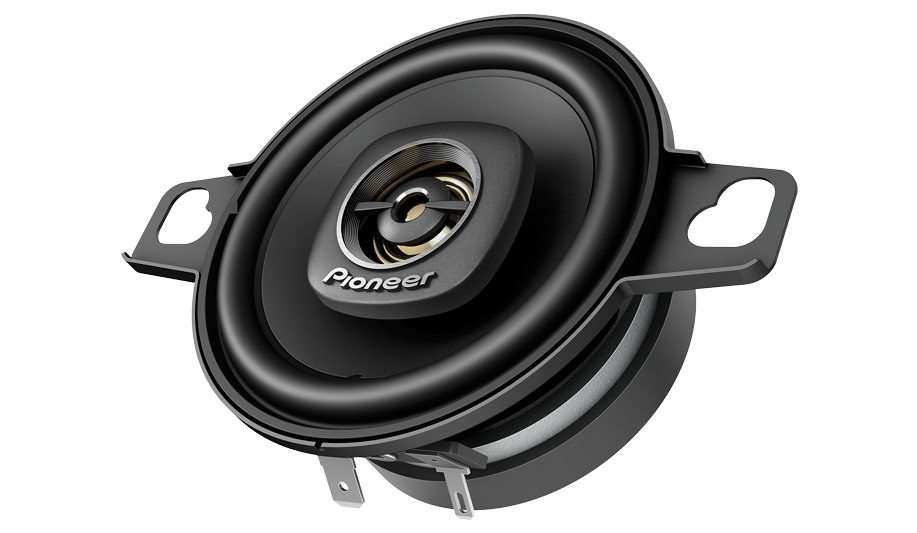

The TS-A709 is a 2-way coaxial 7 cm speaker. Its carbon and mica reinforced woofer cone stands up to the harsh in-car environment while providing natural sounding tonal qualities with an OPEN & SMOOTH transition to the polyetherimide Tweeter
Easily Upgrade to High Performance
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

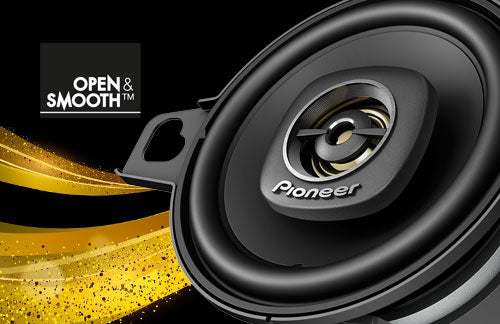

Open & Smooth Concept
Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

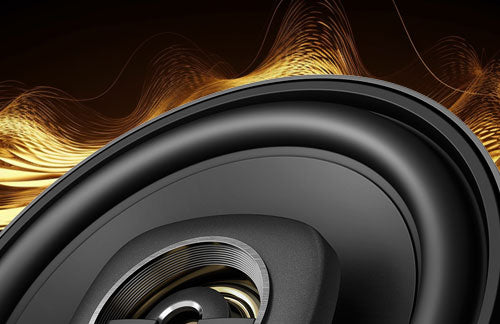

Carbon & MICA Reinforced IMPP
Make strike balance of rigidity and internal loss for the superior vocal sound. Thereby gives Powerful and clear sound. Low distortion at high volume

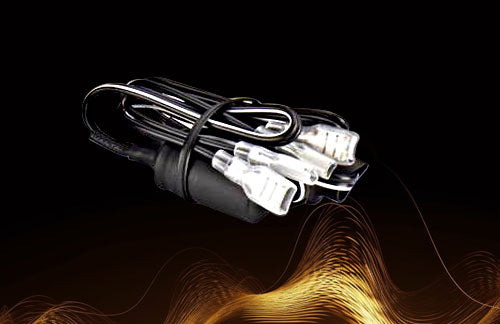

Inline crossover network with High Quality Audio Capacitors
The inline audio quality capacitor is designed as an 850 Hz HPF or High Pass Filter. An HPF allows only higher frequencies above 850 Hz to the speaker. This protects the TS-A709 from high power low frequency damage.
Other Features
Rubber Surround
Equalizer
Tune the characteristic of the high frequency response. Unique shape flange makes good off-axis response.
Tweeter
Light weight Polyetherimide (PEI) tweeter diaphragm provides natural and clear vocal.
Larger Magnet
Redesigned magnet with larger size for more power to drive voice coil.
Specifications
Main Features
Open & Smooth
Yes
Carbon MICA Reinforced IMPP
Yes
Speaker Size
7 cm
Type
2-way coaxial
Max Power
450 W
RMS
100 W
Frequency response
101 Hz to 34 kHz/ 850 Hz to 33kHz - with inline packaged crossover network
Sensitivity
82 dB
Impedance
4 Ω
Mounting Depth
32 mm
Woofer Cut-Out Hole
62 mm
Woofer material
IMPP™ Composite Cone
Voice Coil type
Copper
Magnet Type
Neodymium
X-Over Network
Yes (Inline)
