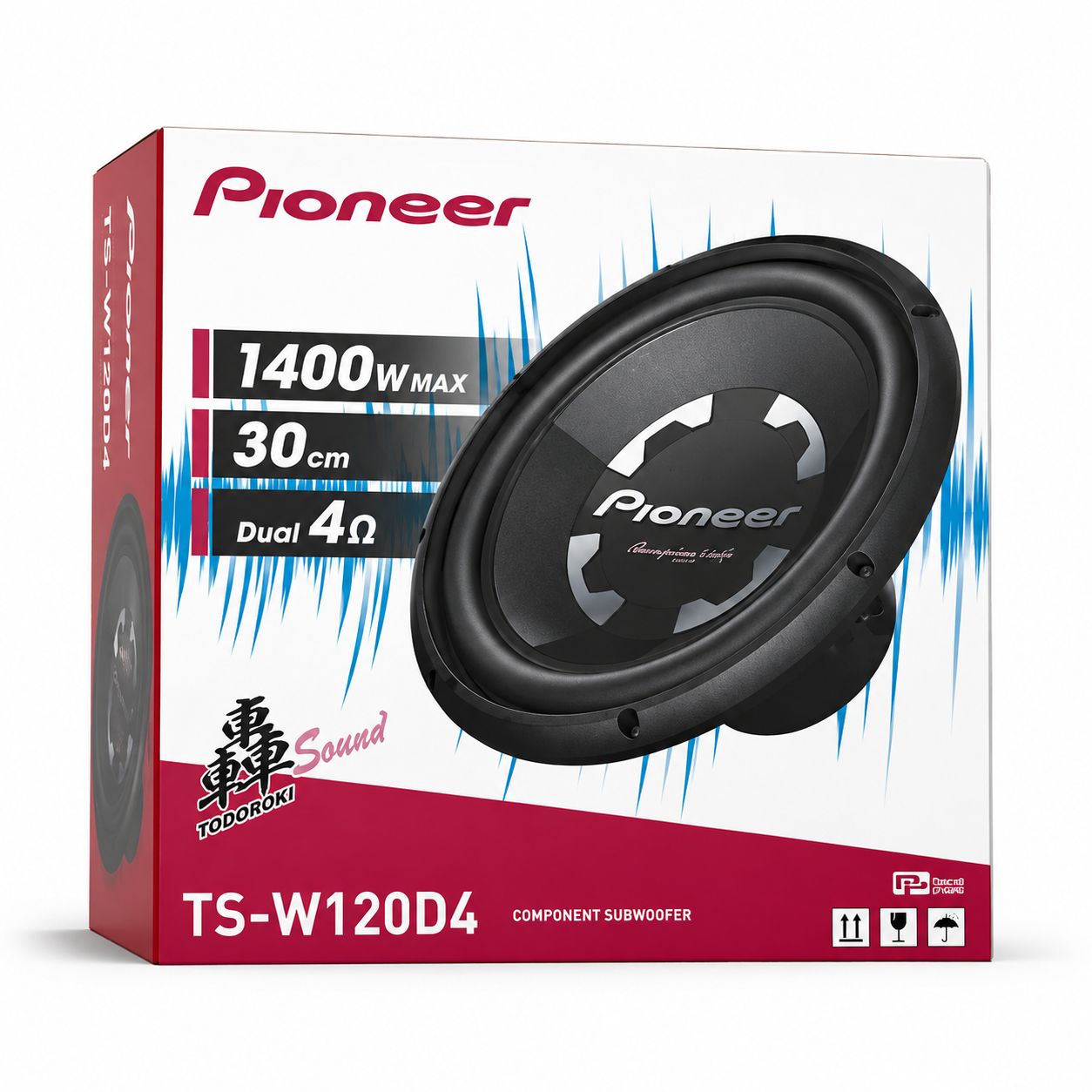

Pioneer TS-W120D4 — 12" Subwoofer, 1400W Max, Dual Voice Coil

If you're setting up a car audio system and want a 12-inch subwoofer that can actually handle serious power without falling apart at high volume, the Pioneer TS-W120D4 is worth a look. It's part of Pioneer's Champion Series, rated at 1400W max and 400W RMS, and it comes with a dual voice coil so you can wire it at 2 ohms or 8 ohms depending on your amp setup. That flexibility matters if you're planning to add a second subwoofer down the line — you won't need to rewire everything from scratch.

The cone is made from Pioneer's IMPP composite material. In plain terms, this means the cone stays rigid and moves as one solid piece even when you're pushing high sound pressure levels, instead of flexing unevenly and distorting the sound. Pair that with the lightweight urethane surround and the cone can move more air per stroke, which is a big part of why this sub can produce loud, tight bass without needing an oversized enclosure.

One thing that sets this sub apart from cheaper 12-inch options is the dual spider design. Most budget subwoofers use a single suspension layer that either sounds mushy at low volume or breaks down at high volume — you rarely get both right. The TS-W120D4 uses two suspension layers: a soft one that keeps everyday listening smooth and accurate, and a firmer one that kicks in under heavy bass hits to stop the cone from over-extending and damaging itself. Combined with the double stack magnet, which gives the voice coil more driving force and better heat handling, you get bigger bass with noticeably less distortion, even when you're running it hard for a long drive.

Dust and heat are the two things that quietly kill subwoofers over time, and Pioneer built this one with that in mind. The vented design is engineered to let heat escape efficiently while keeping the ventilation gaps small enough to stop dust and debris from working their way inside — so the coil and magnet stay protected without sacrificing cooling.

For the finer details: the terminals are gold-plated, which matters more than people think, since it cuts down on signal loss at the connection point. The voice coil is copper, which is still the standard for clean, accurate sound reproduction in this price range. And because it's built to work in both sealed enclosures and free-air setups, you're not locked into one type of installation — useful whether you're working with a hatchback or a full-size SUV.

If you want to hear roughly what it'll sound like in your specific car before installing anything, Pioneer's free CarSoundFit app (available on Android and iOS) simulates in-car sound using real measurement data pulled from actual vehicles.

Key Specifications

 FAQ Section

Q: What is the maximum power handling of the Pioneer TS-W120D4?

A: The Pioneer TS-W120D4 handles up to 1400W maximum power and 400W nominal (RMS) power.

Q: Is the Pioneer TS-W120D4 suitable for both sealed box and free-air installation?

A: Yes, this subwoofer is designed to work in both enclosure (sealed box) and free-air setups, giving installers flexibility based on available trunk or cabin space.

Q: What makes the dual voice coil design useful?

A: A dual voice coil (DVC) gives more flexible wiring options — you can wire it at 2 ohms or 8 ohms — and makes it easier to connect multiple subwoofers for increased bass output.

Q: Does the Pioneer TS-W120D4 have protection against dust and heat damage?

A: Yes, it uses Pioneer's anti-dust heat-release structure that reduces ventilation gaps while still dissipating heat efficiently, protecting internal components from dust-related malfunction.

Q: What is the mounting depth and cutout size required?

A: The mounting depth is 147mm and the cutout hole diameter required is Φ281mm.

 Why Choose Dolphin Accessories

●       Free shipping across India on this product

●       Cash on Delivery (COD) available

●       EMI payment option for easier purchase

●       Brand warranty honored directly

●       Return & exchange policy in place if the product doesn't fit or arrives faulty

●       Physical stores in Agra, Bengaluru, Dehradun, and Rudrapur — for anyone who wants to see or install the sub in person rather than buying blind online

●       Genuine Pioneer stock, sold alongside a wide range of other trusted car audio brands (Focal, Alpine, Morel, JL Audio, Cerwin Vega), so you can compare before you commit

 Comparison: Pioneer TS-W120D4 vs. Pioneer TS-W306R

●       Dual voice coil vs the TS-W306R's single voice coil — the biggest functional difference. The TS-W120D4 can be wired at 2Ω or 8Ω, giving more flexibility for matching amplifiers and adding a second subwoofer later.

●       Higher RMS power handling (400W vs 350W) and higher max power (1400W vs 1300W), so it has more headroom before being pushed to its limit.

●       Dual spider suspension — the two-stage design specifically protects the cone at high-volume peaks, which matters more the harder you drive the system.

●       Gold-plated terminals for a cleaner power connection, versus standard terminals on the TS-W306R.

●       It's noticeably cheaper (₹4,205 vs ₹6,890), which matters if the budget is tight or the build doesn't need dual-coil flexibility.

●       Its aluminum cap and bobbin cooling system (VCCS) is a genuinely solid heat-management design in its own right.
