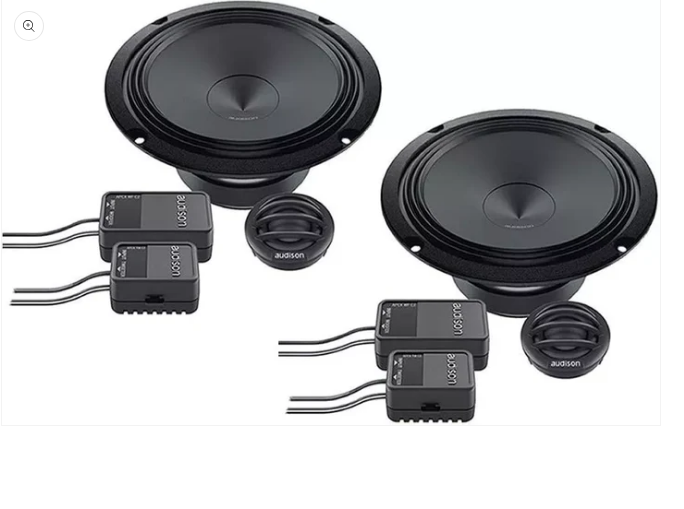

Audison AK 6.5 C2 2-way speaker system consisting of a pair of 165mm woofers, a pair of 26mm tweeters and dedicated crossovers. Enhanced version of the APK 165 kit, it manages 100 Watts of RMS power and a peak of 300 Watts max, 2 Ohm impedance.This kit perfectly combines quality and ease of installation thanks to the separate woofer and tweeter crossovers.

Tweeter AP 1 C2
    Soft Tetolon fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
    Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
    Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.
    Dome profile optimized with FEM simulations for a wide off-axis dispersion.

Woofer AP 6.5 C2
    2Ω impedance, to fully exploit the 65 W power per channel at 2Ω of the AP8.9 bit amplifier.
    65 Hz resonance frequency, to extend the range down to 45 Hz and increase the SPL in the low range.
    25 mm mobile voice coil to maximize efficiency achieving 94 dB, increasing maximum linear excursion up to 2,8 mm and minimizing distortion, even at high listening levels.
    Compact basket with reduced mounting depth, providing ease of installation in OEM placements.
    High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.

Crossover APCX TW C2, APCX WF C2
    Separate ultra-compact crossovers for tweeters and woofers to minimize space requirements and simplify cable routing, facilitating the specialist work.
    Woofer 6dB/oct. low pass filter based on pure cooper high-current inductors for the management of high power avoiding saturation.
    Tweeter 12db/oct high pass filter featuring 100V polypropylene bimetallized capacitor for best sound transparency.

Specifications:

• Tweeter size: 26 mm
• Tweeter cone: Tetolon®
• Tweeter magnet: Neodymium
• Woofer size: 6.5 inches
• Woofer cone: Water-repellent pressed paper
• Woofer magnet: Ferrite
• Mounting depth: 58 mm
• Crossover type: 2 Way Passive Crossover
• Crossover cut off: 4 kHz @ 6 dB/Oct.
• Efficiency: 94 dB
• Impedance: 2Ω
• Frequency Response: 45Hz - 20kHz
• Power Rating (RMS): 100W 300W Peak

What's in the BOX

• 2* Woofers
• 2* Tweeters
• 2* Tweeter Mounts
• 2* Crossovers APCX TW C2
• 2* Crossovers APCX WF C2 &
• 1* Warranty Card
