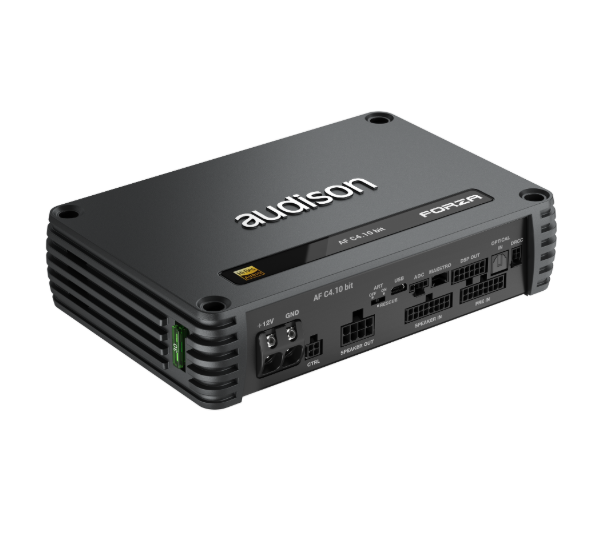

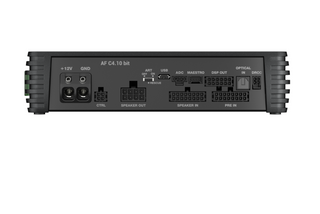

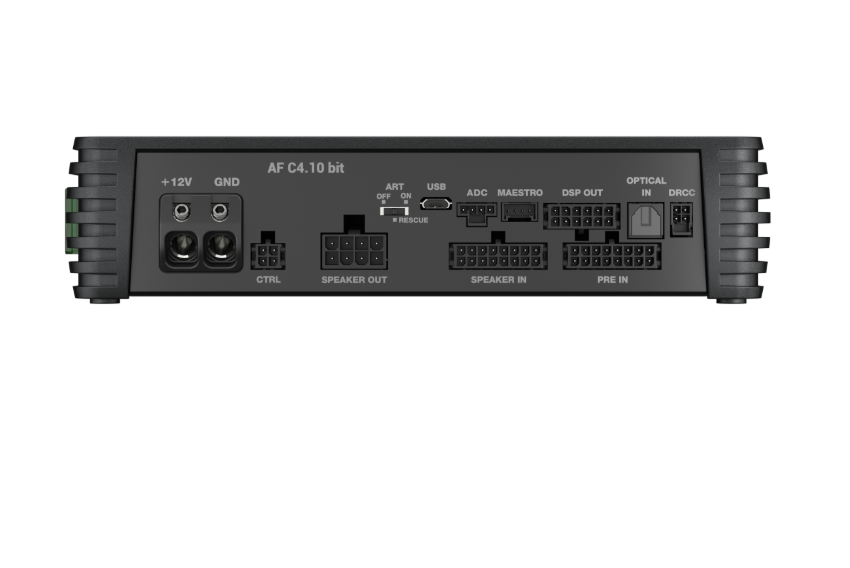

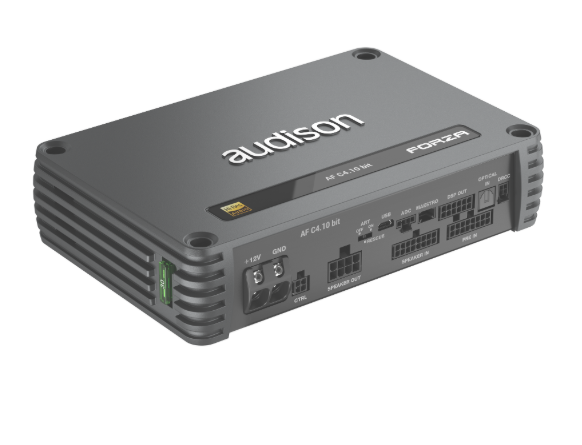

Audison AF C4.10 bit DSP Amplifier | 600W RMS | 10 Channel DSP | Hi-Res Audio Certified
Premium 4-Channel DSP Amplifier for High-Performance Car Audio Systems
The Audison AF C4.10 bit DSP Amplifier is a premium-grade 4-channel Class-D amplifier with integrated 10-channel digital signal processing, engineered for audiophiles, professional installers, and enthusiasts seeking exceptional sound quality, advanced tuning flexibility, and seamless OEM integration.
Delivering 600 Watts RMS total power, the AF C4.10 bit provides 90W x 4 @ 4Ω, 150W x 4 @ 2Ω, and up to 300W x 2 bridged @ 4Ω, making it ideal for powering speakers, component systems, and expanding complex multi-amplifier installations.
Built on Audison's latest-generation ADT (Audison D-Class Technology) and equipped with a native 24-bit / 96 kHz DSP, the amplifier achieves Hi-Res Audio certification, extending frequency response up to 40 kHz for superior detail, clarity, and realism.
Whether upgrading a factory sound system or building a competition-level audio setup, the AF C4.10 bit offers unmatched control, flexibility, and performance.
What is Audison AF C4.10 bit DSP Amplifier?
The Audison AF C4.10 bit is a high-performance 4-channel DSP amplifier featuring a built-in 10-channel digital signal processor, advanced crossover management, time alignment, equalization controls, OEM integration technologies, and Hi-Res Audio playback capability.
It combines amplifier power and professional-grade DSP processing in one compact unit, reducing installation complexity while maximizing audio performance.
Why Choose Audison AF C4.10 bit?
- 600W RMS total output power
- Built-in 10-channel DSP processor
- Hi-Res Audio Certified
- Advanced OEM integration support
- 24-bit / 96 kHz DSP processing
- High-efficiency Class-D amplifier technology
- Flexible bridging options
- Professional tuning capabilities
- Compact installation footprint
- Expandable audio system architecture
Key Features
✔ 600W RMS Total Power Output
✔ 4-Channel Class-D Amplifier
✔ 10 DSP-Controlled Output Channels
✔ Hi-Res Audio Certified Performance
✔ Native 24-bit / 96 kHz DSP Processing
✔ Frequency Response up to 40 kHz
✔ 90W x 4 @ 4Ω RMS
✔ 150W x 4 @ 2Ω RMS
✔ 300W x 2 Bridged @ 4Ω RMS
✔ Fully Bridgeable Channel Design
✔ 81% Amplifier Efficiency
✔ Optical Digital Input Support
✔ 8 High-Level Inputs
✔ 8 Low-Level Inputs
✔ 6 Native Pre-Out Channels
✔ Advanced Parametric Equalization
✔ Time Alignment and Delay Correction
✔ Automatic OEM Signal Summing
✔ Input Phase Correction
✔ Universal Speaker Simulator Technology
✔ iDatalink Maestro AR Compatibility
✔ Audison B-CON Absolute Volume Support
✔ Windows 10 & Windows 11 Compatible Software
Advanced Technologies
ADT (Audison D-Class Technology)
Latest-generation Class-D amplifier architecture featuring higher switching frequencies, improved filtering, and superior efficiency for outstanding sound quality and power delivery.
Hi-Res Audio DSP Processing
The native DSP operates at 24-bit / 96 kHz, extending audio reproduction up to 40 kHz for exceptional detail and high-resolution playback.
Electrical Signal Analysis
Automatically analyzes OEM audio signals and applies correction for seamless factory integration and accurate sound reproduction.
Acoustic Analysis Integration
Compatible with USB measurement microphones, allowing real-time acoustic analysis and direct visualization within the DSP tuning software.
Universal Speaker Simulator
Ensures maximum compatibility with modern factory head units that require speaker load detection.
Absolute Volume Technology
When paired with Audison B-CON Bluetooth receivers, the amplifier maintains full digital signal resolution and dynamic range.
Independent Dual Power Supply Design
Separate power supplies for amplifier and DSP sections ensure stable DSP operation even during voltage fluctuations and vehicle start-stop events.
Benefits of Audison AF C4.10 bit DSP Amplifier
- Superior sound quality and clarity
- Professional-grade tuning capabilities
- Greater control over speaker performance
- Enhanced staging and imaging
- Improved bass, midrange, and treble accuracy
- Seamless OEM integration
- Reduced installation complexity
- Expandable for larger audio systems
- Hi-Res Audio playback support
- Compact and efficient design
Who Should Buy Audison AF C4.10 bit?
The Audison AF C4.10 bit is ideal for:
- Car audio enthusiasts
- Professional audio installers
- OEM sound system upgrade users
- Hi-Res audio lovers
- DSP tuning enthusiasts
- Premium vehicle owners
- SQ (Sound Quality) competition builds
- Multi-amplifier audio systems
- Advanced custom audio installations
- Users seeking professional-level audio processing
Technical Specifications
| Specification |
Details |
| Model |
Audison AF C4.10 bit |
| Amplifier Type |
Class-D |
| Channels |
4 |
| DSP Outputs |
10 Channels |
| Total RMS Power |
600W |
| Power @ 4Ω |
90W x 4 |
| Power @ 2Ω |
150W x 4 |
| Bridged Power |
300W x 2 @ 4Ω |
| DSP Resolution |
24-bit / 96 kHz |
| Frequency Response |
10 Hz – 42 kHz |
| Hi-Res Audio |
Yes |
| S/N Ratio |
Up to 105 dB |
| Efficiency |
81% |
| Optical Input |
Yes |
| High-Level Inputs |
8 |
| Low-Level Inputs |
8 |
| Native Pre-Outs |
6 |
| Operating Voltage |
6.5V – 17.5V |
| Weight |
1.38 kg |
Frequently Asked Questions (FAQ)
Is Audison AF C4.10 bit a DSP amplifier?
Yes. It combines a powerful 4-channel amplifier with a built-in 10-channel digital signal processor.
Does it support Hi-Res Audio playback?
Yes. The amplifier is Hi-Res Audio certified and processes audio at 24-bit / 96 kHz.
How much power does the AF C4.10 bit produce?
It delivers 600W RMS total output power with up to 150W x 4 @ 2Ω.
Can the channels be bridged?
Yes. Each pair of channels can be bridged to deliver 300W x 2 @ 4Ω.
Is it compatible with factory OEM audio systems?
Yes. It includes advanced OEM integration technologies, high-level inputs, signal summing, phase correction, and speaker simulation.
Can I expand the system with additional amplifiers?
Yes. The amplifier provides up to 10 DSP-controlled outputs and multiple pre-out channels for system expansion.
Does it include digital audio inputs?
Yes. It supports optical S/PDIF digital input for high-quality digital audio sources.
