Audison Prima AP 1P Tweeter Component with AIF Faceplates — 150W Peak, 8Ω, 1.2–25 kHz

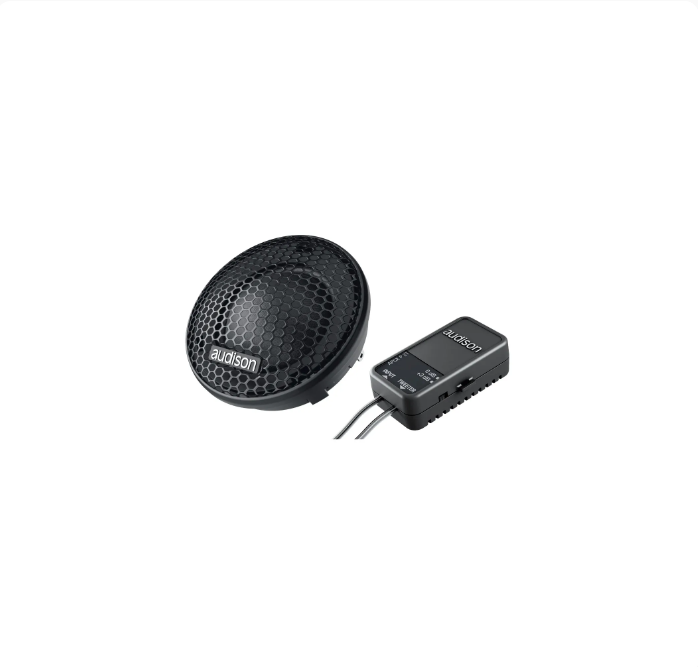

The Audison Prima AP 1P is a 29 mm (1.14") dome tweeter with Audison's exclusive AIF technology (Any Install Faceplate). It comes with three interchangeable faceplates and a set of mounting accessories, so the installer can use it in OEM positions or in A-pillar installs with a mesh or spoke grille. A double neodymium tablet motor and a 1-inch (25 mm) CCAW voice coil give excellent high-frequency extension and dynamic response. It handles 150W peak power at 8Ω.

Key Features

• AIF technology with three faceplates: OEM, mesh grille and spoke grille
• Mounting accessories supplied for any installation (a watch-band-style strap, a double-angle cup and a flush mounting ring, per Audison's listing)
• Double neodymium tablet motor for excellent high-frequency extension
• 25 mm (1") CCAW voice coil and a Tetolon fibre dome optimized with FEM simulation for wide off-axis dispersion
• Frequency response of 1.2 kHz – 25 kHz, 8Ω impedance and 92 dB sensitivity
• APCX P 2T crossover (high-pass at 4 kHz, 12 dB/octave) with a 0 dB / +3 dB level switch

Technical Highlights

The 150W peak rating applies with the tweeter high-pass filtered at 2.5 kHz (12 dB/octave). Re is 5.75Ω, and the tweeter's installation depth is about 12 mm, so it fits shallow positions. The three faceplates let you pick the best balance of protection and performance: the mesh grille for protection and the spoke grille for maximum acoustic performance in A-pillar installs.

Ideal For / System Fit

• A-pillar installs that need either grille protection or maximum acoustic performance
• OEM tweeter positions that need the OEM faceplate for a factory look
• Installers who want one tweeter that covers several mounting scenarios

A tweeter only: it needs a woofer or midrange driver and an amplifier, and its 8Ω impedance should be checked against your amplifier and crossover set-up.

Installation Note

Choose the faceplate and mounting accessory that suits the position, then set the crossover to 0 dB or +3 dB depending on how much the highs need adjusting. A professional installer is recommended.

What's Included

1 x pair of Audison Prima AP 1P tweeters with APCX P 2T crossovers, three faceplates and mounting accessories (confirm the exact contents with your supplier)

Precautions

• Always connect the tweeter through its supplied crossover
• Match amplifier power to the 150W peak rating to avoid damage
• Check that the 8Ω impedance suits your amplifier and system design
• Professional installation is recommended

Audison Prima AP 1P vs. Prima AP 1

Frequently Asked Questions

What is the Audison Prima AP 1P?
A 29 mm dome tweeter with AIF technology, three faceplates and a passive crossover.

What does AIF mean?
Any Install Faceplate: the tweeter comes with OEM, mesh grille and spoke grille faceplates.

How much power can it handle?
150W peak, at 8Ω.

What is its frequency range?
1.2 kHz – 25 kHz, with 92 dB sensitivity.

Is it 4Ω or 8Ω?
Audison's brochure and the Elettromedia store list 8Ω.

What crossover does it use?
The APCX P 2T, with a 4 kHz high-pass at 12 dB/octave and a 0 dB / +3 dB level switch.

How is it different from the AP 1?
It has a larger 29 mm dome, 8Ω impedance, a wider frequency range and three faceplates.

How deep is it?
The installation depth is about 12 mm.

Product Specifications
