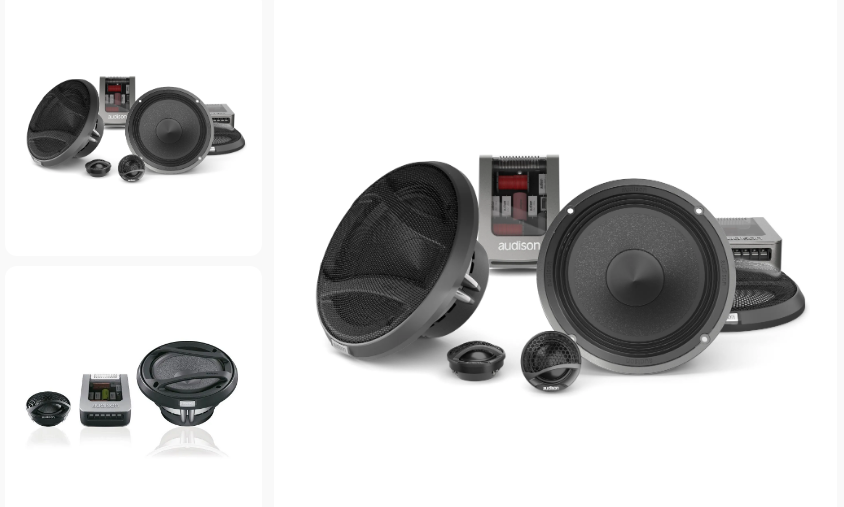

AUDISON COMP. SPK AV K6 KIT 2 WAY COMPONENTS

SKU: AV K6 KIT 2 WAY COMPONENTS
Regular price Rs. 54,990.00 Rs. 49,490.00 10% off
Unit price
per
Tax included. Shipping calculated at checkout.

Description

Technical Specs LF

Woofer Size 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 250 W
Power Handling - Continuous 125 W
Frequency Response 50 ÷ 22k
Voice Coil Diameter 30 mm (1.18 in)
Magnet Size 90 x 40 x 15
Crossover Level Adjustment +2; 0; -2 dB

Technical Specs HF

Tweeter Size 28 mm (1.1 in)
Voice Coil Diameter 28 mm (1.18 in)

Electric-acoustic Specs LF

Re 3.5 Ohm
Fs 68 Hz
Mms 16.1 g
Cms 0.34
BL 5.5
Qms 7.84
Qts 0.74
Vas 8.2 l
Le 0.31 mH
Spl 91 dB
Xmax 3 mm (0.12 in)

Kit Tech Data

Crossover Low-Pass Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct.
Cone Diameter 130 mm

General

Weight Woofer 1.2 kg
Weight Tweeter 0.07 kg



Features

  • TWEETER1 Tetolon dome, a combination of silk and cotton with
    proprietary damping treatment, provides low mass and
    resonance-free response up to ultrasonic frequencies.
  • CCAW (Copper Clad Aluminium Wire) voice coil wound on
    double layer, extremely lightweight and compact, resulting
    in a very high efficiency and a crisp, dynamic sound.
  • The annular geometry of the Rear Damping Chamber,
    together with the proprietary damping material, extends
    the frequency response to lower limits and reduces
    harmonic distortion.
  • High flux density Neodymium magnet, for very high
    efficiency and detailed sound.

WOOFER

  • The profile of the aerodynamic basket’s spokes along
    with the open-air design ensure drastic reduction of
    back-wave reflections.
  • The exclusive Butyl rubber Triple Wave surround
    profile provides full linearity as well as reliable
    performance under extreme conditions.
  • Extremely lightweight and compact, the CCAW (Copper
    Clad Aluminium Wire) voice coils wound on double layer
    provide very high efficiency and neat, dynamic sound.
  • Cotton-fibre pressed paper cone with treatment.
  • The Radial Venting System ensures high thermal
    capability, power handling and reliability
