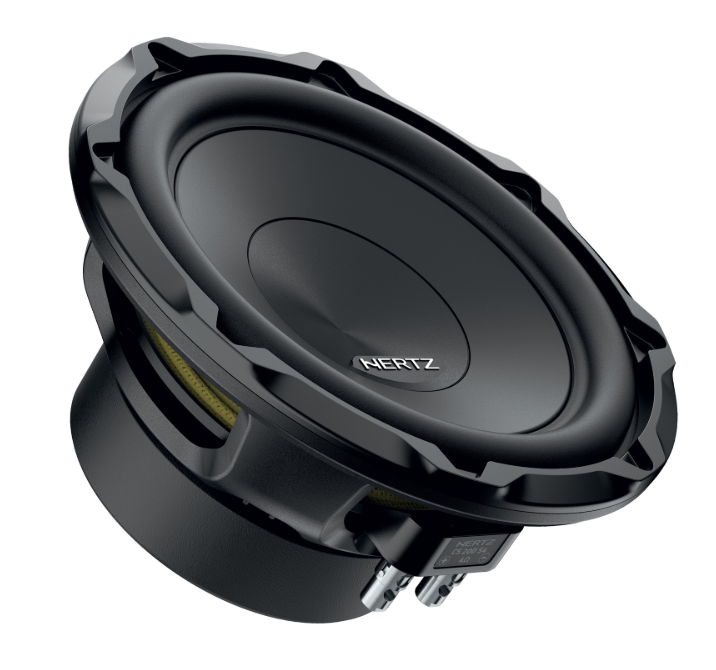

Hertz CS 250 S2 10-inch 600W Peak 2 Ohm Car Subwoofer
If you want serious bass without sacrificing boot space, the Hertz CS 250 S2 is built exactly for that. Part of the Cento series, this 10-inch subwoofer punches well above its size — delivering tight, powerful low frequencies from enclosures as small as 16 litres. Whether you're upgrading a hatchback or building a dedicated audio setup, the CS 250 S2 gives you the authentic Hertz sound experience in a compact, installation-friendly package.
What is the Hertz CS 250 S2?
The Hertz CS 250 S2 (model S2250) is a 250 mm (10-inch) car subwoofer from the Cento series, designed for enthusiasts who want high-output bass from small sealed enclosures. It runs on a 2 Ohm single voice coil configuration, making it compatible with virtually any car amplifier on the market. Its compact magnetic group and reduced mounting depth mean it fits into tight spaces where most 10-inch subs simply won't go.
Why Choose the Hertz CS 250 S2?
- ✅ Genuine Hertz Cento series — engineered in Italy for audiophile-grade bass
- ✅ Compact design fits sealed enclosures from just 16 litres
- ✅ 2 Ohm impedance for maximum compatibility with aftermarket amplifiers
- ✅ Six-layer voice coil handles extended high-volume listening without overheating
- ✅ FEM-simulated cone geometry for low distortion even at high excursion
- ✅ No rear decompression hole — box can be shaped tightly around the driver
- ✅ Accepts up to 8 AWG wiring for low-resistance, high-current connections
Key Features
-
Size: 250 mm (10 inches) — A versatile size that balances deep bass extension with compact installation requirements.
-
Power Handling: 300W RMS / 600W Peak — Handles sustained power cleanly, with headroom for dynamic peaks.
-
Impedance: 2 Ohm single voice coil — Works with a wide range of mono and stereo amplifiers right out of the box.
-
Voice Coil: 35 mm, six-layer copper — Wound on a high thermal resistance glass fibre former to manage heat during long sessions.
-
Cone Material: Polypropylene — Lightweight and rigid, engineered for accurate low-frequency reproduction.
-
Magnet: High-density flux ferrite — Provides a strong, consistent magnetic field for controlled excursion.
-
Xmech: 16.5 mm (0.65 in.) — Generous mechanical excursion limit for deep, undistorted bass.
-
Magnet Dimensions: 120 × 45 × 34 mm — Compact group that keeps overall depth low for tight installs.
-
Weight: 3.795 kg (8.37 lb.) — Solid build without being unnecessarily heavy.
-
Terminal Block: Push connectors up to 8 AWG — Fast, secure wiring even in multi-subwoofer setups.
-
ABS Plastic Gasket included — Allows fitment of the optional CG 250 grille for a clean, finished look.
Advanced Technologies
Fluid Dynamic Optimisation System
At high excursion levels, air compression inside the enclosure can create unwanted noise and distortion. Hertz addressed this with a clever spider design that doubles as an air duct, channelling airflow through venting holes in the basket. The result is a dramatic reduction in turbulence-related distortion — something you'll notice immediately when the bass gets loud.
FEM-Simulated Cone and Suspension
The cone geometry, surround, and spider were all designed using Finite Element Method (FEM) computer simulations. This means every component is optimised to work together, maintaining control and minimising breakup even when the driver is pushed to its mechanical limits. You get cleaner bass at higher volumes compared to conventionally designed drivers.
Six-Layer Voice Coil Cooling
The 35 mm voice coil is wound in six layers of pure copper on a glass fibre former with high thermal resistance. This construction dissipates heat far more effectively than a standard two or four-layer coil, keeping operating temperatures in check during extended listening sessions at high acoustic pressure.
Compact Sealed Enclosure Optimisation
The electroacoustic parameters of the CS 250 S2 have been specifically tuned for sealed boxes starting from 16 litres. The absence of a rear decompression hole means the enclosure can be built to follow the exact contours of the subwoofer, saving precious space in the boot without compromising bass quality.
Benefits
- 🔊 Deep, powerful bass from a surprisingly small enclosure
- 🎯 Precise, controlled low frequencies with minimal distortion
- 🌡️ Stays cool during long, loud listening sessions
- 🔧 Easy to install in virtually any car with its compact depth
- ⚡ Compatible with most aftermarket amplifiers thanks to 2 Ohm impedance
- 🏆 Authentic Italian engineering from one of the most respected names in car audio
- 🔌 Accepts thick 8 AWG cables for a clean, low-resistance wiring job
Who Should Buy the Hertz CS 250 S2?
- Car audio enthusiasts upgrading from factory speakers who want real bass impact
- Owners of hatchbacks, sedans, or SUVs with limited boot space
- Anyone building a custom sealed enclosure who needs a compact, high-output driver
- Multi-subwoofer builders who need a 2 Ohm driver for easy amplifier loading
- Audiophiles who want the Hertz Cento sound signature in the low-frequency range
- Installers looking for a reliable, well-engineered sub that's easy to work with
Technical Specifications
| Specification |
Value |
| Model |
CS 250 S2 (S2250) |
| Size |
250 mm (10 in.) |
| Power Handling – Continuous (RMS) |
300 W |
| Power Handling – Peak |
600 W |
| Impedance |
2 Ohm |
| Voice Coil Diameter |
35 mm (1.38 in.) |
| Voice Coil Layers |
6 (pure copper) |
| Voice Coil Former |
High thermal resistance glass fibre |
| Cone Material |
Polypropylene |
| Magnet Type |
High-density flux ferrite |
| Magnet Dimensions (D × d × h) |
120 × 45 × 34 mm (4.72 × 1.77 × 1.34 in.) |
| Xmech |
16.5 mm (0.65 in.) |
| Minimum Enclosure Volume (Sealed) |
16 litres (CS 250 model) |
| Filter Component |
Subwoofer (no crossover) |
| Terminal Block |
Push connectors, up to 8 AWG |
| Weight |
3.795 kg (8.37 lb.) |
| Series |
Cento |
| Brand |
Hertz |
Why Choose Dolphin Accessories?
- ✅ 100% Genuine Products — Every Hertz product we sell is sourced through authorised channels. No grey imports, no counterfeits.
- ✅ Expert Guidance — Our team understands car audio. We'll help you match the right subwoofer to your amplifier and enclosure.
- ✅ Pan-India Delivery — We ship to every corner of India, securely and reliably.
- ✅ Secure Packaging — Subwoofers are packed to survive transit. Your driver arrives in perfect condition.
- ✅ After-Sales Support — Have a question after your purchase? We're here to help with setup, wiring, and tuning advice.
- ✅ Trusted by Enthusiasts — Dolphin Accessories is a go-to destination for serious car audio upgrades across India.
Frequently Asked Questions
Q: What size is the Hertz CS 250 S2?
A: It's a 10-inch (250 mm) subwoofer, part of the Hertz Cento series.
Q: What is the RMS power rating of the CS 250 S2?
A: The continuous (RMS) power handling is 300W, with a peak rating of 600W.
Q: What impedance is the Hertz CS 250 S2?
A: It's a 2 Ohm single voice coil subwoofer, which makes it compatible with most aftermarket mono amplifiers.
Q: What is the minimum enclosure size for the CS 250 S2?
A: Hertz has optimised this subwoofer for sealed enclosures starting from 16 litres, making it ideal for compact installs.
Q: Does the Hertz CS 250 S2 need a ported or sealed box?
A: It's specifically engineered for sealed enclosures. The lack of a rear decompression hole also means the box can be custom-shaped tightly around the driver.
Q: What amplifier should I pair with the CS 250 S2?
A: Any mono amplifier that can deliver 300W RMS into a 2 Ohm load will work well. Contact us if you need a recommendation.
Q: What wire gauge does the CS 250 S2 accept?
A: The push-connector terminal block accepts cables up to 8 AWG, which is ideal for high-current subwoofer installations.
Q: Is the Hertz CS 250 S2 suitable for a hatchback?
A: Yes. Its compact depth and small enclosure requirement make it one of the better choices for hatchbacks and sedans with limited boot space.
Q: Does the CS 250 S2 come with a grille?
A: It includes an ABS plastic gasket for grille fitment. The optional CG 250 metal mesh grille is available separately.
Q: Is the Hertz CS 250 S2 available in 4 Ohm?
A: The S2 variant is a 2 Ohm single voice coil. Hertz offers other variants in the Cento range if you need a different impedance.
Q: Is this a genuine Hertz product?
A: Yes. Dolphin Accessories sells only 100% genuine Hertz products sourced through authorised distribution channels.
Q: Do you ship the Hertz CS 250 S2 across India?
A: Absolutely. We offer pan-India delivery with secure packaging to ensure your subwoofer arrives in perfect condition.
