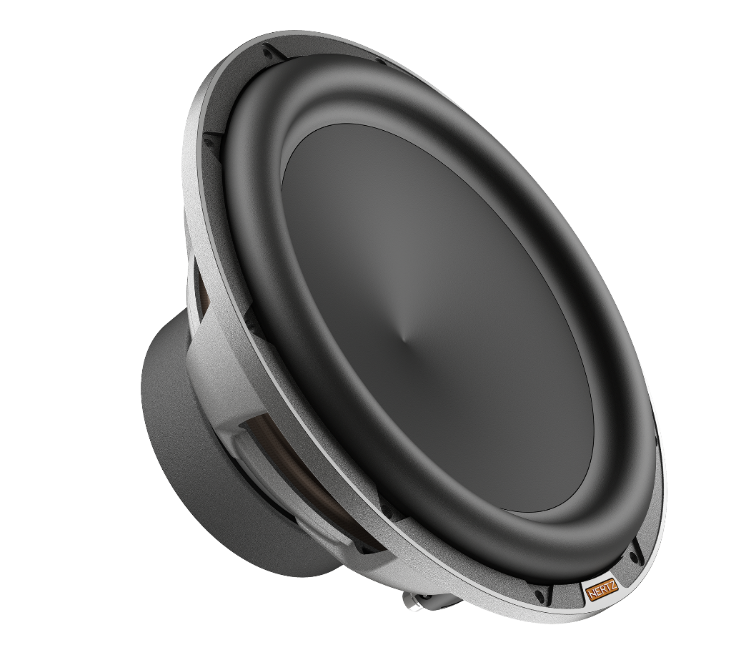

Hertz MP 300 D2.3 Pro 12" Peak 1200W Car Subwoofer

If you're running a high-current mono amplifier that's happiest at 1 Ohm, the Hertz MP 300 D2.3 Pro was built with you in mind. It's the same Mille Pro 12-inch platform as the D4.3 — same V-cone®, same Boundary Free surround, same advanced air cooling system — but with a 2+2 Ohm dual voice coil that lets a single subwoofer present a 1 Ohm load when wired in parallel. That means maximum power transfer from your amplifier, maximum output from your system, and no need to run two subs just to hit 1 Ohm. One driver, one box, full power.

What is the Hertz MP 300 D2.3 Pro?

The MP 300 D2.3 Pro is part of Hertz's Mille Pro subwoofer range — a line that sits directly below the flagship Legend series and shares many of its core technologies. It features a 300mm (12-inch) driver with 1200W peak power handling, a high-density ferrite magnet motor, and a 65mm 4-layer CCAW dual voice coil wound on a TIL-P former. The key distinction from the D4.3 variant is the 2+2 Ohm impedance: wire the two coils in parallel for a 1 Ohm load, or in series for a 4 Ohm load. The design is optimised for sealed enclosures starting from 27 litres, making it practical for most car boot installations.

Why Choose the Hertz MP 300 D2.3 Pro?

• ✅ 2+2 Ohm DVC — wire a single sub to 1 Ohm in parallel for maximum amplifier power transfer
• ✅ Mille Pro series — shares core technologies with the flagship Legend line
• ✅ 1200W peak power handling from a compact 12-inch driver
• ✅ Boundary Free IIR rubber surround for higher SPL at the same external diameter
• ✅ Exponential V-cone® for high cone stiffness and distortion-free bass at maximum excursion
• ✅ Advanced air cooling system — keeps voice coil temperature low under extreme musical programs
• ✅ 8 AWG terminal block with anti-short circuit cover — built for 1 Ohm wiring demands
• ✅ Wall-mount installation compatible — saves space in compact enclosure builds

Key Features

• 300mm (12") Driver Size — A full-size 12-inch subwoofer delivering deep, authoritative bass in sealed enclosures from 27 litres.
• 1200W Peak / 600W Continuous Power — Handles serious amplifier power with headroom to spare.
• 2+2 Ohm Dual Voice Coil (DVC) — Wire in parallel for 1 Ohm (maximum power from a single sub), or in series for 4 Ohm — two clear, practical options.
• 65mm (2.5") 4-Layer CCAW Voice Coil — Copper-clad aluminium wire with four layers for high power handling and low operating temperature.
• TIL-P Former with Venting Holes — Combines efficient heat dissipation with a high Qms factor (low mechanical loss) for dynamic, punchy bass.
• High-Density Ferrite Magnet (164.5 x 75 x 35mm) — A large, powerful motor that maximises magnetic flux density and minimises saturation risk.
• Exponential V-cone® — Optimised cone geometry for maximum stiffness and resistance to deformation at full ±26mm excursion.
• Mineral-Injected Pressed-Pulp Paper Cone — Superior rigidity and damping for accurate, controlled bass reproduction. Same construction technique as the Legend line.
• Boundary Free IIR Rubber Surround — Delivers higher SPL than conventional surrounds of the same external diameter.
• Anti-Resonant Aluminium Alloy Basket — Six-spoke self-standing structure with built-in venting holes beneath the spider for thermal management. Same basket as the flagship ML 2500.3.
• Advanced Air Cooling System — 10 vents on the bottom plate and holes behind the voice coil winding force air through the gap to keep coil temperature low — no centre hole required.
• 8 AWG Terminal Block — Solid push connectors with anti-short circuit cover for ultra-low wiring resistance in 1 Ohm configurations.
• Wall-Mount Installation Compatible — Can be secured directly to the box wall using the included damping rubber disk.

Advanced Technologies

2+2 Ohm DVC for 1 Ohm Single-Sub Operation: The defining feature of the D2.3 over the D4.3 is the ability to wire a single subwoofer to 1 Ohm by connecting the two 2 Ohm voice coils in parallel. This is particularly valuable when running a high-current mono amplifier that delivers its rated power at 1 Ohm. You get maximum power transfer from your amplifier into a single driver, without needing to add a second subwoofer. Wire in series for 4 Ohm if your amplifier prefers a higher load.

Exponential V-cone® Geometry: The cone follows an exponential V-profile that has been mathematically optimised for maximum stiffness-to-weight ratio. This prevents the cone from flexing or deforming at the full ±26mm mechanical excursion, preserving bass accuracy and keeping distortion low at all output levels. The mineral-injected pressed-pulp construction is the same technique used in the flagship Legend series.

Boundary Free IIR Rubber Surround: The Integrated Inner Roll surround design removes the traditional boundary constraints of the surround, allowing the cone to travel further and more freely. This translates directly into higher SPL output compared to conventional subwoofers of the same external diameter. The high-purity IIR-butyl rubber material ensures long-term durability and consistent performance.

TIL-P Voice Coil Former with Advanced Air Cooling: The voice coil is wound on a TIL-P former with venting holes behind the winding. This material combines efficient heat dissipation with a high Qms factor (low mechanical loss), contributing to the subwoofer's dynamic, punchy character. The air cooling system forces air through the gap between the voice coil and the pole piece via 10 vents on the bottom plate, keeping the coil operating temperature low even during the most demanding musical programs — without requiring a centre hole on the bottom plate.

Benefits

• 🎵 Maximum power from a single 12-inch sub — 1 Ohm parallel wiring extracts full amplifier output
• ⚡ 1200W peak power handling — built for high-current, high-output amplifier systems
• 📦 Compact sealed enclosure from 27 litres — fits most car boots without major fabrication
• 🔇 Low distortion at maximum excursion — clean, accurate bass at all volume levels
• 🌡️ Advanced air cooling keeps performance consistent during long, high-power listening sessions
• 🏆 Mille Pro series — Legend-derived technologies at a more accessible price point
• 🔩 Premium CNC diamond-cut basket — same as the flagship ML 2500.3
• 📦 Wall-mount installation option — saves space and simplifies enclosure builds

Who Should Buy the Hertz MP 300 D2.3 Pro?

• Car audio enthusiasts running a 1 Ohm stable mono amplifier who want maximum power from a single 12-inch subwoofer
• Installers and system builders who prefer a single-sub, single-box setup at 1 Ohm rather than running two subs
• Music lovers upgrading from entry or mid-level subwoofers to a performance-oriented Mille Pro driver
• Anyone who wants deep, high-output bass in a compact sealed enclosure without needing a massive box
• Enthusiasts who want Legend-derived technology — V-cone®, Boundary Free surround, TIL-P former — at a more accessible price point

Technical Specifications

Why Choose Dolphin Accessories?

• ✅ 100% Genuine Products — Every product we sell is sourced directly from authorised distributors. No counterfeits, no compromises.
• ✅ Expert Guidance — Our team understands car audio. We help you choose the right subwoofer, amplifier, and enclosure for your specific vehicle and listening preferences.
• ✅ Pan-India Delivery — We ship to every corner of India, with careful packaging to ensure your equipment arrives in perfect condition.
• ✅ Secure Packaging — Premium car audio equipment deserves premium protection. Every order is packed to withstand the journey.
• ✅ After-Sales Support — Have a question after your purchase? Our team is here to help with installation advice, compatibility queries, and more.
• ✅ Trusted by Enthusiasts — Dolphin Accessories is the go-to destination for serious car audio enthusiasts across India.

Frequently Asked Questions

Q: What is the difference between the Hertz MP 300 D2.3 and the MP 300 D4.3?
A: The only difference is the voice coil impedance. The D2.3 has a 2+2 Ohm DVC, which lets a single subwoofer wire to 1 Ohm (parallel) or 4 Ohm (series). The D4.3 has a 4+4 Ohm DVC, which wires to 2 Ohm (parallel) or 8 Ohm (series). Choose the D2.3 if your amplifier is 1 Ohm stable and you want maximum power from a single sub.

Q: Can I wire the Hertz MP 300 D2.3 Pro to 1 Ohm with a single subwoofer?
A: Yes. Connect the two 2 Ohm voice coils in parallel and you get a 1 Ohm load from a single subwoofer. This is the key advantage of the D2.3 over the D4.3, which requires two subs to achieve 1 Ohm.

Q: What amplifier power does the Hertz MP 300 D2.3 Pro need?
A: The MP 300 D2.3 handles 600W continuous and 1200W peak. For best results, pair it with a mono amplifier rated between 400W and 800W RMS at your chosen impedance (1 Ohm or 4 Ohm).

Q: What size enclosure does the Hertz MP 300 D2.3 Pro need?
A: It is optimised for sealed (closed) enclosures starting from 27 litres. This is relatively compact for a 12-inch subwoofer, making it practical for most car boot installations.

Q: What is the difference between the Hertz Mille Pro and Mille Legend series?
A: The Legend series (ML 2000.3, ML 2500.3) is Hertz's flagship subwoofer line, featuring neodymium magnets and the most advanced motor systems. The Mille Pro series shares many of the same core technologies — V-cone®, Boundary Free surround, TIL-P former, mineral-injected cone, and the same 6-spoke aluminium basket as the ML 2500.3 — but uses a high-density ferrite magnet motor, making it a more accessible option without sacrificing the fundamental acoustic character of the Legend line.

Q: What is the Exponential V-cone® on the MP 300 D2.3?
A: The V-cone® is a specially shaped cone with an exponential profile that maximises stiffness while minimising weight. This prevents the cone from flexing or deforming at high excursion levels, keeping bass reproduction accurate and distortion-free even at maximum output.

Q: What is the maximum excursion of the Hertz MP 300 D2.3 Pro?
A: The mechanical excursion (Xmech) is ±26mm (±1.02 inches), which is very high for a 12-inch subwoofer and contributes to its ability to produce deep, high-output bass in a compact sealed enclosure.

Q: Can I install the Hertz MP 300 D2.3 Pro directly on the box wall?
A: Yes. The design specifically allows for wall-mount installation. A damping rubber disk is included with the product to secure the subwoofer to the box wall and ensure air exchange through the 10 vents on the bottom plate.

Q: Why does the MP 300 D2.3 Pro not have a centre hole on the bottom plate?
A: The advanced air cooling system uses 10 vents on the bottom plate and holes behind the voice coil winding to force air through the gap and cool the coil. This provides better thermal inertia, maximises the magnetic field in the pole, and allows wall-mount installation — three advantages over a traditional centre-hole design.

Q: What cable size does the terminal block on the MP 300 D2.3 Pro accept?
A: The terminal block accepts cables up to 8 AWG and includes an anti-short circuit cover. This is especially important for 1 Ohm wiring configurations where cable resistance has a significant impact on performance.

Q: Does Dolphin Accessories provide installation support for the Hertz MP 300 D2.3 Pro?
A: Yes. Our team can guide you on amplifier matching, enclosure sizing, and wiring configurations. Reach out to us before or after your purchase for personalised advice.

Q: Is the Hertz MP 300 D2.3 Pro covered by a warranty?
A: Yes, it comes with the standard Hertz manufacturer warranty. Please contact Dolphin Accessories after your purchase for warranty registration and support details.
