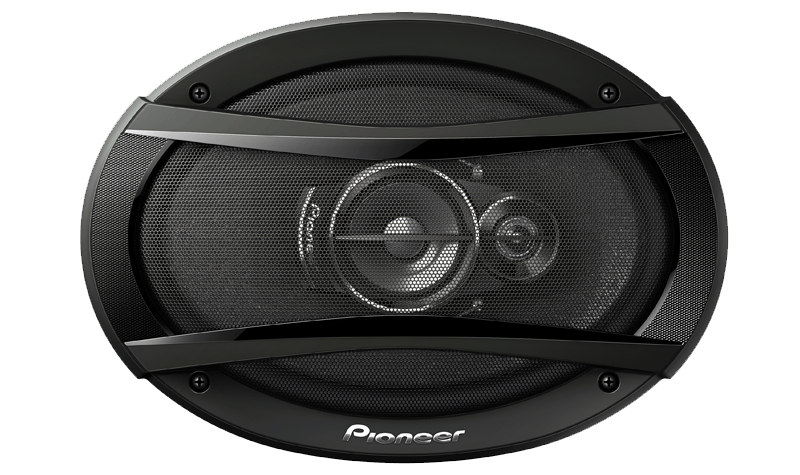

View more of TS-A936H in gallery
Looking for some powerful music in your car, these oval speakers with a deep basket is the perfect choice, especially for your rear tray. Contributing to its impeccable sound reproduction is its new MMM cone, elastic polymer surround, P.F.S.S. spider and the large magnet size.
Features of TS-A936H
New MMM cone
Mica is pulverised and infused onto a pulpy cone design to bring rigidity into other wise light but fragile pulp cone. With a 10% increased flexural rigidity and a water resistant back, be ensured that this speaker will last long while breaking all sound records.
P.F.S.S. spider
Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.
Full covered grille
High-quality appearance and universal design enhance the vehicle interior. Fully covered mesh grille prevents physical damage and provide high durability which can withstand even severe use.
Other features of TS-A936H
Deep basket
Increase power output with high durability. For the bass lover in you
Elastic polymer surround
Cone surround is made of elastic polymer for durability at extreme conditions
Heat-resistant Voice coil
High quality aluminium voice coil bobbin is used to safeguard from heat and prolong speaker life
Larger Magnet
Redesigned magnet with larger size for more power to drive voice coil.
Specifications of TS-A936H
Click to expand
General Information
Type: COAX. 3-way
Sound pressure level: 92dB（±1.5dB）
Frequency range: 27Hz　～　24,000Hz　（ï¼20ｄB）
Maximum power: 550W
Nominal power: 90(W)
Cone size: 6"Ｘ9" ( 163Ｘ237 mm), CONE
Impedance: 4 OHM
Crossover frequencies: 3400Hz
